Java Built with Unsupported Old Compilers

When I turned off DLL loading from the current working directory to defeat DLL pre-loading luring attacks, one of the things I discovered was that the Java plug-in was broken in Firefox and Chrome. This problem of Java finding its C library is not new at all. The tubes are choked with posts and bug reports about getting various things that are dependent on Java to work when msvcr71.dll can’t be found. The new CWDIllegalInDllSearch = 0xFFFFFFFF option just exacerbates an existing deployment problem.

PS> cd 'C:\Program Files (x86)\Java\jre6\bin\new_plugin'
PS> dumpbin /dependents .\npjp2.dll
Microsoft (R) COFF/PE Dumper Version 10.00.30319.01
Copyright (C) Microsoft Corporation.  All rights reserved.


Dump of file .\npjp2.dll

File Type: DLL

  Image has the following dependencies:

    USER32.dll
    GDI32.dll
    ADVAPI32.dll
    MSVCR71.dll
    KERNEL32.dll
    ole32.dll

  Summary

        6000 .data
        3000 .rdata
        1000 .reloc
        7000 .rsrc
        4000 .text

The root of the Mozilla-compatible browser Java plugin problem is npj2.dll which is dynamically linked to msvcr71.dll. Because it is a plugin, the DLL loading is done by Windows on behalf of the executable and  (Chrome or Firefox) rather than the plugin. The new_plugin directory includes msvcr71.dll which probably helped if a browser changed its CWD to the new_plugin directory when loading npj2.dll but with searching CWD out of the picture it doesn’t.

Java simply doesn’t do a good job of loading its C runtime correctly on Windows. It’s not a new problem. I don’t understand why don’t just change a switch on the complier to /MT instead of /MD and statically link the C runtime into jpjp2.dll. That would make the whole problem go away.

There are also some other oddities here. There are 2 different C runtimes used in the 32-bit version of Java 6 for Windows. For some reason they are redistributing msvcr71.dll (C runtime from Visual Studio .NET 2003) and also msvcrt.dll which is supposed to be the name of the private C runtime used by Windows components. However, the msvcrt.dll in the Java directory is actually the C runtime from Visual Studio 6 or possibly a very old Platform SDK.

By implication Oracle/Sun is using the C/C++ optimizing compiler from Visual Studio 6 (1998) and Visual Studio .NET 2003 to build the 32-bit version of Java. Holy cow those are 5 and 3 versions back from the current compilers and between 12 and 7 years old. I’m pretty sure that Visual Studio 6 is no longer supported and unfortunately both predate the side-by-side C runtime distribution system that starts with Visual Studio 2005.

The x64 version of Java is even stranger. It links against a Microsoft  x64 C runtime library called msvcrt.dll. Again this is the name reserved for the private Windows platform C runtime but this msvcrt.dll has file version 6.10.2207.0 either from a very old version of the Windows Platform SDK that provided x64 compilation support prior to Visual Studio 2005 or from a tool chain that was available by request (and is no longer available) for Visual Studio 2003.

It seems like the Java team has made a bit of a fetish of using really old compilers for the Microsoft platforms. I can understand that there is a risk of breaking stuff when upgrading a tool chain but this has been taken a bit to the extreme by the Java build team. There is a cost to testing a huge platform like Java when building with a new tool chain. Sun was cash-constrained and, although popular, Java SE didn’t really make them any money directly.

Good News for Java 7 (Probably)

It looks like the problem is being addressed. OpenJDK 7 builds, it looks like Oracle is upgrading to the C/C++ compiler from Visual Studio 2010.

BEGIN WARNING: At this time (Spring/Summer 2010) JDK 7 is starting a transition to use the newest VS2010 Microsoft compilers. These build instructions are updated to show where we are going. We have a QA process to go through before official builds actually use VS2010. So for now, official builds are still using VS2003. No other compilers are known to build the entire JDK, including non-open portions. So for now you should be able to build with either VS2003 or VS2010. We do not guarantee that VS2008 will work, although there is sufficient makefile support to make at least basic JDK builds plausible. Visual Studio 2010 Express compilers are now able to build all the open source repositories, but this is 32 bit only. To build 64 bit Windows binaries use the the 7.1 Windows SDK.END WARNING.

The 32-bit OpenJDK Windows build requires Microsoft Visual Studio C++ 2010 (VS2010) Professional Edition or Express compiler. The compiler and other tools are expected to reside in the location defined by the variable VS100COMNTOOLS which is set by the Microsoft Visual Studio installer.

So maybe in 2011 Java will have its C runtime library sorted out by virtue of having a supported global mechanism to register the Visual Studio 2010 C runtime.

Java Browser Plugin for Mozilla Vulnerable to DLL Preloading Attack

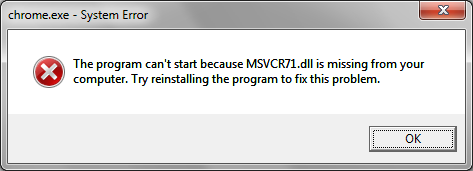

chrome-java-bonkThe “Next Generation Java Plug-in 1.6.0_21 for Mozilla browsers” 32-bit version for Windows uses CWD to load its C runtime library (msvcr71.dll). If you have globally disabled loading libraries from the current working directory (CWD) by globally setting CWDIllegalInDllSearch to 0xfffffff, you will get a bonk like the one shown at the right. Firefox also fails to load the JVM but it doesn’t give any feedback about why it isn’t working.

Note that this is not a general problem with Java. Java desktop applications like Eclipse work and the Java ActiveX plugin for IE works. The problem is specific to the NSAPI plugin and this indicates that the Java plugin for Google Chrome and Mozilla Firefox is one of the applications that is vulnerable to a DLL preloading luring attack. Specifically, when a Java applet is loaded, the JVM will cause the browser to load msvcr71.dll from whatever is the current working directory for the browser.

The error can be fixed by dialing back your global CWDIllegalInDllSearch to 2 or create an exception for chrome and firefox. However, I would rather not open those programs to attack from a USB drive.

The first location that Windows uses to search for a DLL is the directory containing the binary executable. Placing a copy of msvcr71.dll in the same directory with Firefox and Chrome fixes the problem. The problem with that is if Java services the msvcr71.dll with a newer version, then Chrome and Firefox will cause the JRE to load the wrong C runtime causing bad things to maybe happen. Another option is to create a symbolic link (which requires Vista or later).

Incidentally, the mklink command is not a standalone utility, it is a built-in to the cmd.exe shell. If you want to use mklink via powershell, you need a function to invoke cmd.exe.

function mklink { & "$env:systemroot\system32\cmd.exe" /c mklink $args }

Running mklink requires Administrator privilege.

PS> cd C:\Users\breiter\appdata\Local\Google\Chrome\Application
PS> mklink msvcr71.dll 'C:\Program Files (x86)\Java\jre6\bin\msvcr71.dll'
symbolic link created for msvcr71.dll <<===>> C:\Program Files (x86)\Java\jre6\bin\msvcr71.dll
PS> cd 'C:\users\breiter\AppData\Local\Google\Chrome SxS\Application'
PS> mklink msvcr71.dll 'C:\Program Files (x86)\Java\jre6\bin\msvcr71.dll'
symbolic link created for msvcr71.dll <<===>> C:\Program Files (x86)\Java\jre6\bin\msvcr71.dll
PS> cd 'C:\Program Files (x86)\Mozilla Firefox'
PS> mklink msvcr71.dll 'C:\Program Files (x86)\Java\jre6\bin\msvcr71.dll'
symbolic link created for msvcr71.dll <<===>> C:\Program Files (x86)\Java\jre6\bin\msvcr71.dll
PS>

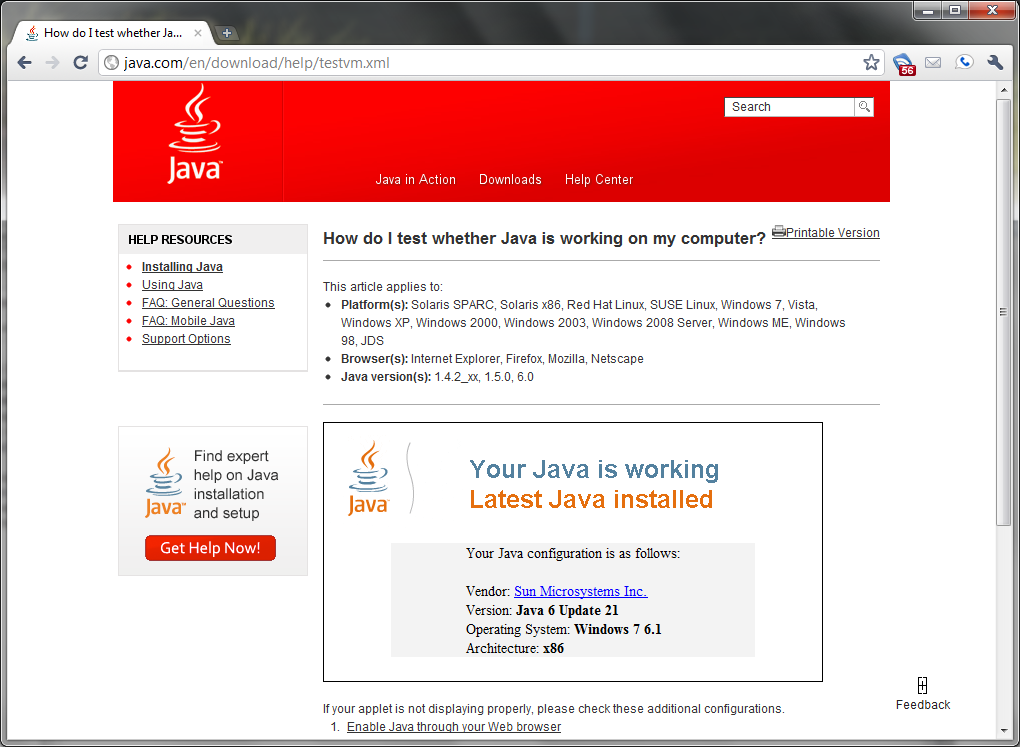

With the symlink fix in place, the Java version test page loads correctly in Chrome with no bonks with loading libraries from CWD disabled.

chrome-java-crt-symlink

Microsoft Should Formally Deprecate CWD from LoadLibrary Search

Microsoft recently released security security advisory 2269637, “Insecure Library Loading Could Allow Remote Code Execution”. The gist is that the search behavior of LoadLibrary() includes the current working directory, which is not the same as the directory containing the binary executable. Typically the current working directory (CWD) is set at launch time by Windows shell shortcut (LNK) or implicitly by invoking a document with a file association. The CWD can be anywhere on a supported local or remote file system, including Windows network (SMB/CIFS) shares and WebDAV.

Most applications must load code from libraries (DLLs) in order to run. The CWD is not a trusted secure location like Program Files or System32 but for reasons of backwards compatibility with pre-Windows NT forms of Windows, CWD is searched when loading DLLs. This makes the default behavior of LoadLibrary() dangerous and many, many Windows applications are vulnerable to luring attacks as a result.

Sample Luring Attack Scenario

  • Click on a link to an MP3 in an email or web page
  • File association causes popular MP3 player to load
  • CWD is set to the remote location of the MP3 player
  • Attacker has placed a malicious DLL that the popular MP3 player loads in the same location as the MP3
  • MP3 player loads malicious DLL
  • Malicious DLL loads the real DLL so MP3 player won’t crash
  • Popular MP3 player is owned an executing evil code

    Unfortunate Default Behavior

    Your application doesn’t have to search CWD but it is the default for reasons of backwards compatibility. Developers can turn this behavior off but it is the default and you a) have to know that you need to turn it off and b) know how to turn it off.

Patch Optionally Introduces New Behavior

KB2264107 is a patch that allows you to set registry keys to change the circumstances under which CWD is considered. The simplest option is to create a new DWORD value of the HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Control\Session Manager key called CWDIllegalInDllSearch and set it to 0xffffffff. chrome-load-dll-cwd-errorThis globally disables the use of CWD for loading libraries.

My first thought was this would be fine. I’m running Windows 7 x64 with no legacy 16-bit apps. It should work fine and for me it did. The second computer I tried this on had a problem where Google Chrome 5 was unable to find avutil-50.dll. Chrome keeps its DLLs in a version-numbered subdirectory of the one containing Chrome.exe. This isn’t a part of the normal DLL search path and it seems like Chrome 5 is working around this by setting CWD to the directory which contains the DLLs before calling LoadLibrary(). Chrome 6 beta doesn’t do this which is why I didn’t notice the problem.

To fix this you can either dial the global CWDIllegalInDllSearch down to 2 which indicates CWD is allowed to be searched only if it is a local folder. Better, is to create a KEY_LOCAL_MACHINE\Software\Microsoft\Windows NT\CurrentVersion\Image File Execution Options\chrome.exe key with a CWDIllegalInDllSearch DWORD value of 2 (and remember to delete this when Chrome 6 goes stable).

I had a similar problem with the Apple Update program failing when it tried to install the latest version of QuickTime.

Developers Should Disable Loading DLLs from CWD

depI was really stunned to realize that Chrome was using this CWD load behavior. They probably didn’t realize the implications and it is insidious because it is the default. I think all developers and testers should install KB2264107 and globally disable loading from CWD. (Yes this is a PITA and it might break stuff on your box but you can suck it up and white list apps that are broken.) If your apps are broken by this then you need to fix them.

Microsoft should encourage this by formally deprecating loading DLLs from CWD with Windows 7 SP1. They need to roll it out like they did DEP. There needs to be Group Policy settings and a GUI for manipulating these registry keys along the lines of the DEP compatibility with radio buttons like “Turn on loading libraries from CWD” and “Turn off loading libraries from CWD except for those I select". With Windows 7 SP1, the default is to leave CWD turned on. By the time Windows 8 rolls around, the default is to disable CWD.

KB2264107 is Insufficient

The hotfix should probably actually provide some protection by globally disabling some form of CWD loading. Right now all it does is create the potential for you to make some registry changes which is definitely not OK for the average user. At a minimum they need to disable CWD over WebDAV (CWDIllegalInDllSearch=1) and probably all network shares (CWDIllegalInDllSearch=2). I’m curious why there is no setting to disable CWD on removable media like USB keys without cranking CWDIllegalInDllSearch all the way to 0xffffffff and disabling CWD globally.

Microsoft needs to provide a GUI and a Group Policy for managing the keys for disabling loading libraries from CWD. The Group Policy option is critical for Enterprise so that they can keep legacy apps running which can’t be modified. They also need to make it clear that loading from CWD is going to be deprecated very soon and will no longer be the default behavior in the next version of Windows.

Microsoft should also provide guidance that any app which depends on loading libraries from CWD is vulnerable. In particular, legacy line of business apps which cannot be made to run without loading libraries from CWD should not be allowed to run on a computer with network access because such apps will be juicy targets for spear phishing. In a lot of cases it should be possible to fix apps that load libraries from CWD by just moving the DLLs into the same directory as the EXE. If the app can’t be fixed, it needs to be sandboxed from the network.

The Sad History of the Microsoft POSIX Subsystem

When Windows NT was first being developed, one of the goals was to make the kernel separate from the programming interface. NT was originally intended to be the successor to OS/2 but Microsoft also wanted to include compatibility to run Windows 3.x applications and to meet 1980s era DoD Orange Book and FIPS specifications to sell to the defense market.  As a result, Windows NT was developed as a multiuser platform with sophisticated discretionary access controls capabilities and it was implemented as a hybrid microkernel 3 userland environments:

  • Windows (Win32)
  • OS/2
  • POSIX

Microsoft had a falling out with IBM over Win32 and the NT project split from OS/2. The team focus shifted to Win32 so much that the Client-Server Runtime Subsystem (CSRSS) that hosts the Win32 API became mandatory and OS/2 and POSIX subsystems were never really completed but they were shipped with the first five versions of Windows NT through Windows 2000. The OS/2 subsystem could only run OS/2 1.0 command-line programs and had no presentation manager support. The POSIX subsystem supported POSIX.1 spec but provided no shells or UNIX-like environment of any kind. With the success of Win32 in the form of Windows 95, the development of the OS/2 and POSIX subsystems ceased. They  were entirely dead and gone from Windows XP and Windows Server 2003.

Meanwhile, around 1996,  Softway Systems developed a UNIX-to-Windows NT porting system called OpenNT. OpenNT was built on the NT POSIX subsystem but fleshed it out into a usable UNIX environment. This was at a time when UNIX systems where hugely expensive. Softway used OpenNT to re-target a number of UNIX applications for US Federal agencies onto Windows NT. In 1998, OpenNT was re-named Interix. Softway Systems also eventually built a full replacement for the NT POSIX subsystem in order to implement system calls that the Microsoft POSIX subsystem didn’t support and to develop a richer libc, single-rooted view of the file system and a functional gcc.

Microsoft acquired Softway and the Interix platform in 1999. Initially Interix 2.2 was made available as a fairly expensive paid add-on to Windows NT 4 and Windows 2000. Later it was incorporated as a component of Services for UNIX 3.0 and 3.5 (SFU) and SFU was made free-of-charge. When Interix became free, Microsoft removed the X11 server component that was previously bundled with Interix because in the wake of U.S. vs Microsoft, they did not want to defend law suits from the entrenched and expensive PC X Server industry but the X11 client libraries remained.

SFU/Interix 3.0 was released in early 2002 followed up with SFU 3.5 less than two years later and cool stuff got implemented like fast pthreads, fork(), setuid, ptys, deaemons with RC scripts including inetd and sendmail among other things. InteropSystems ported OpenSSH and developed a high-performance port of Apache using pthreads and other proof-of-concept ports like GTK and GIMP among many other things. Hotmail even ran on Interix. And enterprising people did cool things like a Linux ELF binary loader on top of Interix.

I got into this stuff and built and donated ports to the SFU/SUA community, including cadaver, ClamAV, GnuMP, libtool, NcFTP, neon, rxvt and gnu whois. My company sponsored the port of OpenSSH to Interix 6.0 for Vista SUA (because it broke backwards compatibility with Interix 3.5 binaries). We ran Interix on all of our workstations and servers. We used it for management, remote access and to interop with clients who used Solaris, Linux and OS X on various projects.

Slowly Going Off the Rails

With Windows Server 2003 R2 (and only R2), Interix became a core operating system component, rebranded as “Subsystem for UNIX Applications” (SUA). Around this time, the core development team was reformed in India rather than Redmond and some of the key Softway developers moved on to other projects like Monad (PowerShell) or left Microsoft. Interix for Windows Server 2003 R2 (aka Interix 5.2) was broken. It shipped with corrupt libraries and a number of new but flawed APIs and broke some previously stable APIs like select(). Also, related to the inclusion of Interix as an OS component, SP2 for Windows Server 2003 clobbers Interix 3.5 installations.

Things have been downhill from there. It’s not just that obvious things didn’t get implemented like a fully-functional poll() or updating binutils and gcc to something reasonably modern. The software suffered from severe bitrot.

One of the consequences of including SUA as an OS component has been that a bifurcation of the “subsystem” from the “tools”. The subsystem consists of just a few files: psxss.exe, psxss.dll, posix.exe and psxrun.exe. This implements the runtime and a terminal environment but nothing else, not even libc. In order to get shells, PTYs and usable programs, you have to install the “Utilities and SDK for UNIX-based Applications”  (aka tools) which is sizable download. Apparently Microsoft has concern about bundling GPL code onto the actual Windows media.

OK. This is a little weird but not a big deal except that the development timeline of the tools is now completely out of whack with Windows releases. The tools for Vista were only available in beta when Vista went gold and the version for Windows Server 2008 and Vista SP1 was not available until about a month after Vista SP1/Win2k8 was released. When Windows 7 was released no tools were available at all in July 2009 when Windows 7 was released. They didn’t become available until 8 months later in March 2010 and contain no new features.

To top things off, while SFU 3.5 ran on all versions of NT 5.x, SUA only runs on Windows Server and the Enterpise and Ultimate client editions. SUA is not available on Vista Business or Home and Windows 7 Professional and Home editions.

Is Interix Dead?

For some reason Microsoft seems to be ambivalent about this technology. On the one hand they bring it into the core of the OS and make it a “premium” feature that only Enterprise and Ultimate customers get to use and on the other they pare back development to almost nothing.

Interix has been supported with support forms and a ports tree maintained by InteropSystems collectively known as SUA Community which operates with supplemental funding from Microsoft. The /Tools ports tree is the source for key packages not provided by Microsoft such as Bash, OpenSSH, BIND, cpio and a ton of libraries that Microsoft does not bundle.  Microsoft has been increasingly reluctant to fund the SUA Community and has survey users on a number of occasions. The latest survey was very pointed and culminated with Microsoft cutting off funding and shuttering the SUA Community site on July 6th, 2010 but a few days later it was back online. I’m not sure how or why.

I have no inside knowledge but my gut says that Interix has lost internal support at Microsoft. It is being kept on life support because of loud complaints from important customers but it is going nowhere. I will be surprised if there is a Subsystem for UNIX-based Applications in Windows 8. I think the ambivalence is ultimately about an API war. At some level, the strategerizers have decided it is better to not dignify UNIX API with support. I think the calculus is that people will still use Windows but it chokes off oxygen for UNIX-like systems if it takes a lot of extra work to write cross-platform code for Windows and UNIX—the premise being that you write for Windows first because that’s where the market is. Furthermore, in a lot of business cases what is needed is Linux support or Red Hat Linux version X support in order to run something. I think Microsoft realizes that it is hard for Interix to beat Linux which is why SUSE and Red Hat Linux can be virtualized under Hyper-V.

I also believe that Microsoft sees C/C++ APIs as “legacy”. I think they want to build an OS that is verifiably secure and more reliable by being based on fully managed code. The enormous library of software built for the Windows API is a huge legacy problem to manage in migrating to such a system. Layering POSIX/UNIX on top of that makes it worse.

Whatever the reason, it seems pretty clear that Interix is dying.

FIXED: Boot Camp Audio Pops and Crackles with Windows 7 x64

Speaker_IconI have passed the 96 hour mark with a working fix for my audio problems with Boot Camp 3.1 running Windows 7 x64. To recap, I recently did a fresh installation of Windows 7 on my Mac Book Pro unibody (late 2009). Afterward, I started getting audio anomalies in the form of loud pops and permanent crackle distortions. These went away if I restarted audiosrv or reset the drivers in any way. For example, unplugging and plugging the speakers back into the minijack would fix it for a while as would turning audio enhancements on and off in the control panel for one of the devices.

I tried getting the latest Crystal Audio driver from Apple and  a solution from the interwebs that suggested disabling 802.11a. I also dug up a much newer version of the Broadcom wireless network card driver than Apple is distributing. I tried fiddling with Skype, which seemed to be part of the problem. I also disabled the USB audio device in my Apple Cinematic Display. None of these interventions totally solved the problem.

Then I came across a KB article that describes a similar but different issue with USB audio:

  • You attach a USB audio device to a computer that is running Windows 7 or Windows Server 2008 R2.
  • You configure this device as the default audio device.
  • You put the computer into the S3 sleep mode while an application plays audio.
  • You disconnect the USB audio device while the computer is in the S3 sleep mode.
  • You resume the computer from the S3 sleep mode.

In this scenario, the application that was playing audio stops responding. Additionally, all the other audio-related applications stop responding. For example, Volume Mixer also stops responding.

This is similar. My problems with mangled audio seemed to be related to power management, sleep yes but also not exclusively. My symptoms were much less extreme than the ones described: corruption instead of outright failure. The hotfix replaces the usbaudio.sys driver that shipped with Windows 7/2008R2 gold with a new version from July 14, 2010. What the heck, usbaudio.sys, is being used by one of the audio devices so I decided to give it a try.

Viola. It fixed my issue. I have had no audio squirreliness in 4 days where I previously could not have gone 4 hours.

What has me really scratching my head is how did I not have this problem before? I was running Windows 7 for a year on this computer and I didn’t really notice much of an audio problem until two weeks ago. Maybe it is the sort of thing that you don’t notice until you do and then you really notice.

Microsoft KB article 2122063: “The audio applications stop responding in Windows 7 or in Windows Server 2008 R2 after you resume the computer from the S3 sleep mode”

Can Google Sidestep Oracle Patent Payouts with Mono/C#?

android-monoOracle has sued Google over patent and copyright violations related to Google’s use of Java technologies in Android. Oracle acquired the Java IP as a part of its acquisition of Sun Microsystems. The details are somewhat different but this has the same general flavor as when Sun sued Microsoft over its non-conforming Java runtime and J++ language compiler. That lawsuit was based in contracts law because Microsoft did license Java from Sun and violated the terms of the license. In this case, Google has attempted to sidestep the licensing requirements of Java with their Dalvik VM. Once could reasonably argue that the technical basis was similar. Both Microsoft and Google want to achieve significant performance improvement and platform integration over a vanilla JVM at the cost of incompatibility with the Java standard. It’s not entirely clear that Davlik actually achieves superior performance, though. I have to wonder if the stack-based VM concept was incidental to the goal of making an end-run around J2SE runtime licensing requirements.

One intriguing—if a bit self-serving and improbable—proposal has been floated by Miguel de Icaza: Why not just replace Dalik with Mono, the free and open source implementation of Microsoft’s .NET? The Mono runtime is LGPLv2 and the class libraries are MIT licensed. Additionally the .NET Micro edition has been placed entirely under the Microsoft Public License which is a BSD-style license with an explicit patent grant. The Microsoft Community Promise explicitly indemnifies patent claims against anyone wishing to implement C# and the CLI and unlike Sun’s patent grant for Java, embrace-and-extend is OK—you can implement a superset of the C# and CLI features and you are still covered.

Google definitely has the wherewithal to migrate Android from Dalvik to Mono if they want to. They could make it a seamless transition and even migrate the bytecode of existing Dalvik (or Java) apps to IL. They could also provide a tool to migrate projects from Java language to C# as Microsoft did. Other implementations exist.

I think it would be pleasantly symmetrical if history repeated itself. Sun’s lawsuit put the kibosh on Microsoft using Java the way it wanted and essentially gave birth to C#, the CLI and the CLR. It would be ironic if history repeated and Android just adopted Mono as its runtime. The road is much easier to tread this time around because a fully open source implementation already exists and it has already been ported onto Android and bytecode-to-IL and Java-to-C# tools exist and are mature.

Mitigate Adobe Reader Vulnerabilities with Google Chrome PDF Viewer

Adobe Reader has a growing list of exploits and a current unpatched vulnerability. The crux of the problem is that PDF documents are not simply documents. PDFs can contain arbitrary code in the form of Javascript or Flash as Adobe Reader embeds a full Javascript runtime and a private Flash runtime environment. Javascript can be disabled via the options but the Flash engine cannot be disabled via the GUI.

An interesting development is that Google Chrome 6.x includes its own PDF rendering plugin. This plugin converts PDF to HTML5 and renders it with the webkit engine. It is very fast and a fundamentally different approach from Adobe Reader. Commodity attacks on Adobe Reader should not be effective on Chrome.

The Chrome Beta channel includes the Chrome PDF viewer plug-in but it is disabled by default. Go to the about:plugins page to enable it. You can also disable the Adobe Reader plug-in while you are at it.

chrome-pdf
