June 22, 2010 Leave a comment

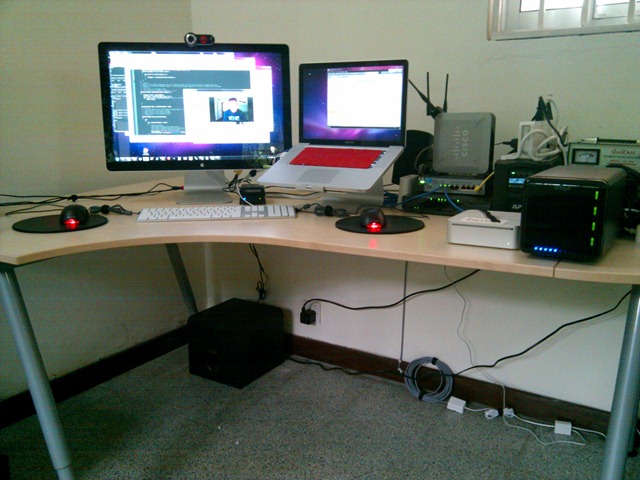

Here’s what my little network looks like installed. My computer is on the left and the network and power stabilizing gear is on the right of my Ikea Galant desk. (Ikea is great for a shipment overseas because they publish the weights so that you can stay inside your limits.)
The normal load on the UPS is ~8% of its capacity. I have seen it as high as 12%. The grey wire coming out of the concrete wall is my DSL line via Vodafone Ghana. (The big black box on the floor is a subwoofer.)
There are other computers and devices on the network but they are all wireless except for the printer which is on an old HP Jetdirect print server.
